Moving Capabilities is not just about transporting physical objects. It means giving an organization the power to act where it would not otherwise be possible - to bring logistics, technology, protection, energy and resilience all the way to the heart of the mission.
The iron horse enables this by:
That's how we make a difference - we don't just move things. We move capabilities.
The Iron Horse offers a robust solution for off-road logistics where wheeled vehicles have limited access.
It can involve transporting ammunition, fuel, tools, field rations or medical supplies from the transshipment point to the unit site - quickly, safely and unaffected by ground conditions.
The platform's high load capacity and customizable loading area make it ideal for supporting both temporary and continuous supply flows.
During operations in sparsely populated areas, forests, mountains or training fields, the Iron Horse can serve as a mobile hub for various types of field support.
It can carry repair technology, battery charging systems, quick service tools or even temporary protection solutions.
Its all-terrain capability means that personnel do not have to carry heavy equipment over long distances, reducing strain and increasing efficiency in the field.

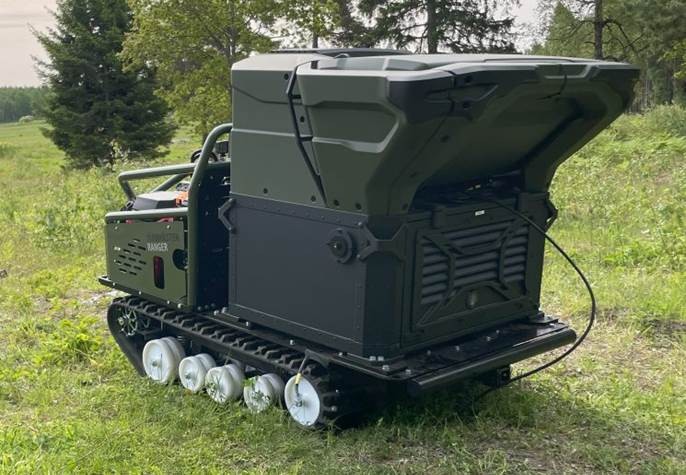

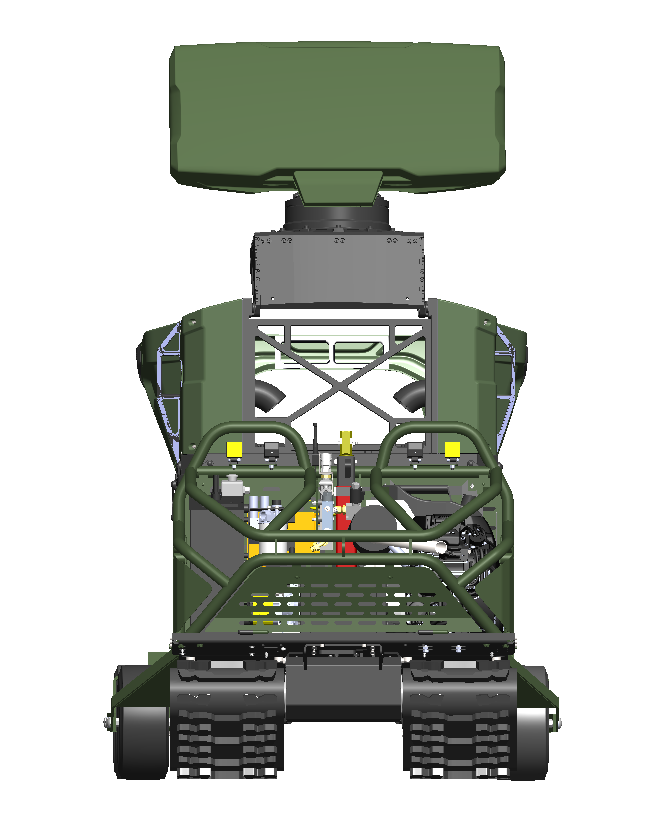

The iron horse is ideal for carrying surveillance systems, temporary sensors, communication equipment or radar-related technology.
It can be rapidly positioned in vulnerable or strategically important areas, for example along temporary border zones or in the context of protecting training areas.
Its low noise profile and maneuverability allow it to operate discreetly in sensitive environments.
In the event of accidents, exercises or live events in difficult terrain, the Iron Horse can be used to quickly move rescue equipment, fuel, stretchers or medical personnel.
It also serves as an evacuation platform for injured personnel when other vehicles cannot reach them. This makes it particularly relevant in the collaboration between the Armed Forces, the Home Guard and other blue light actors in the event of a crisis or heightened alert.

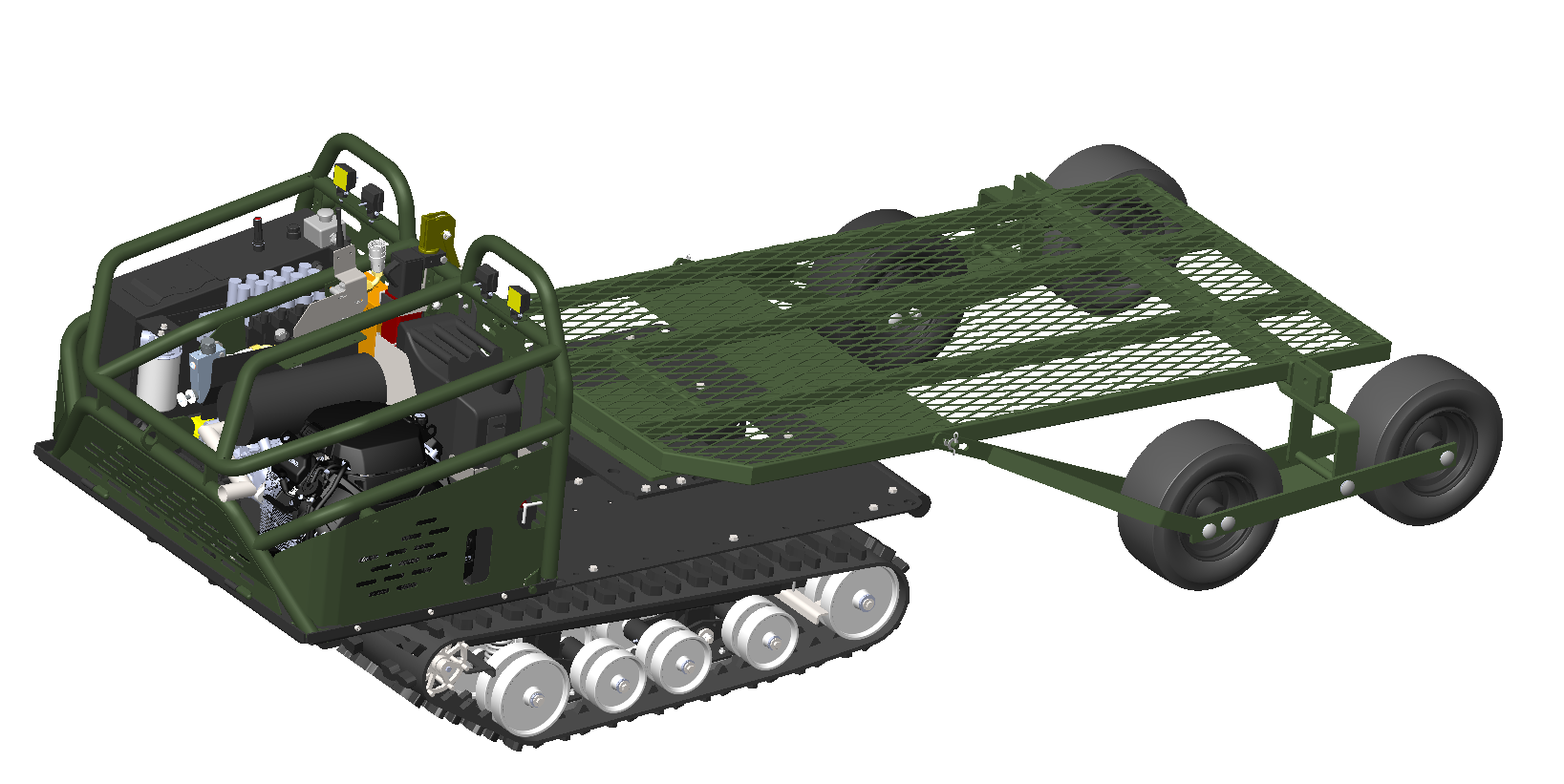

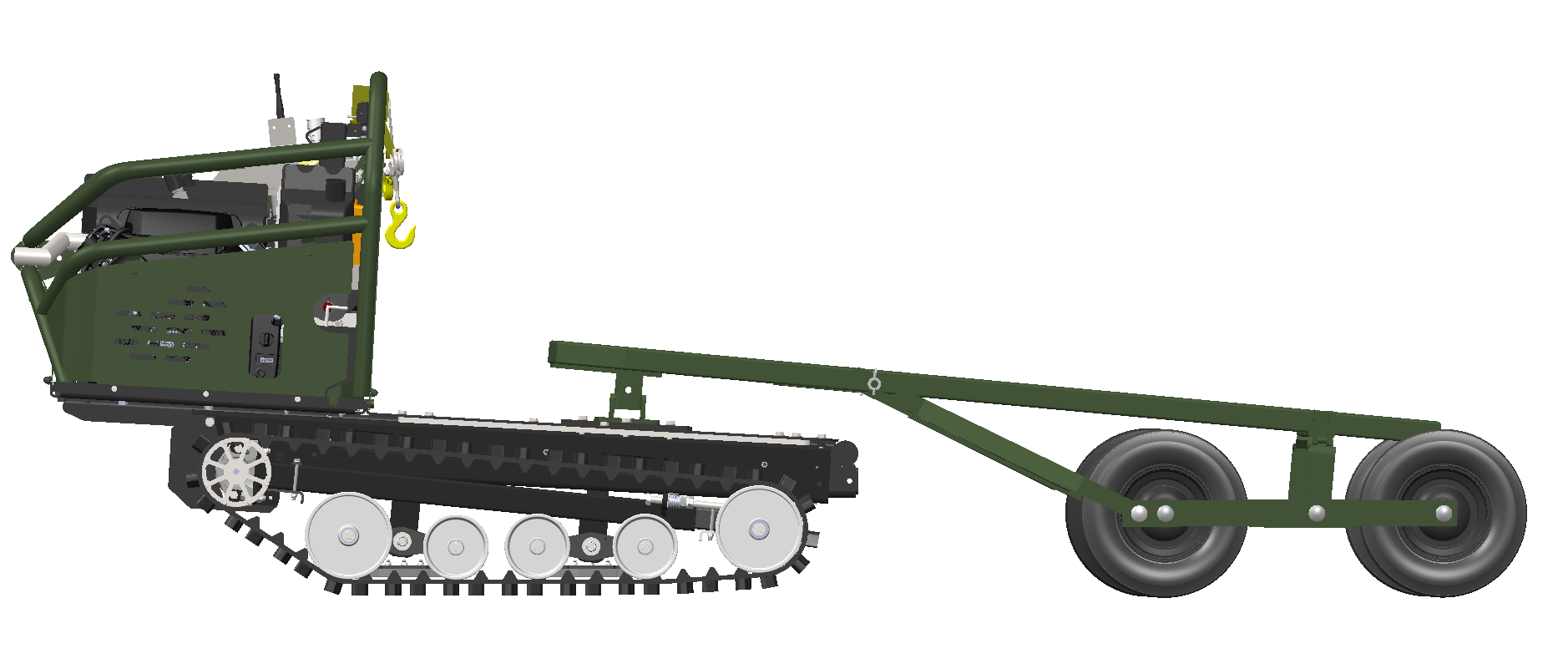

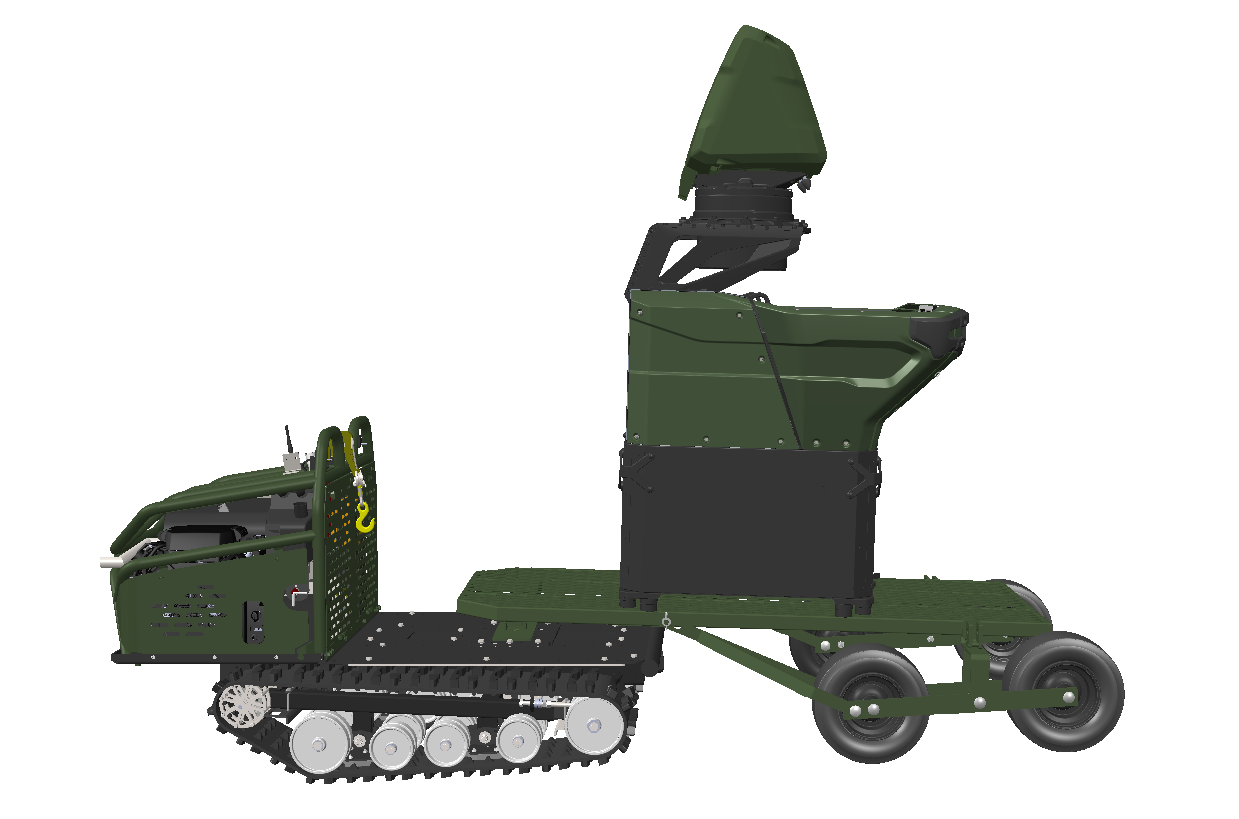

The Iron Horse design allows easy modification depending on the nature of the mission. The platform can be equipped with a winch, crane, trailer or special modules for communication, workshop or energy supply.
It is equally suited to tactical needs as well as longer endurance missions, and can act both solo or in concert with other platforms.
It is a tool that grows with the task.
REMOTE CONTROLLED - HYDRAULIC OPERATION - CENTER OF GRAVITY ADJUSTMENT OF THE CHASSIS

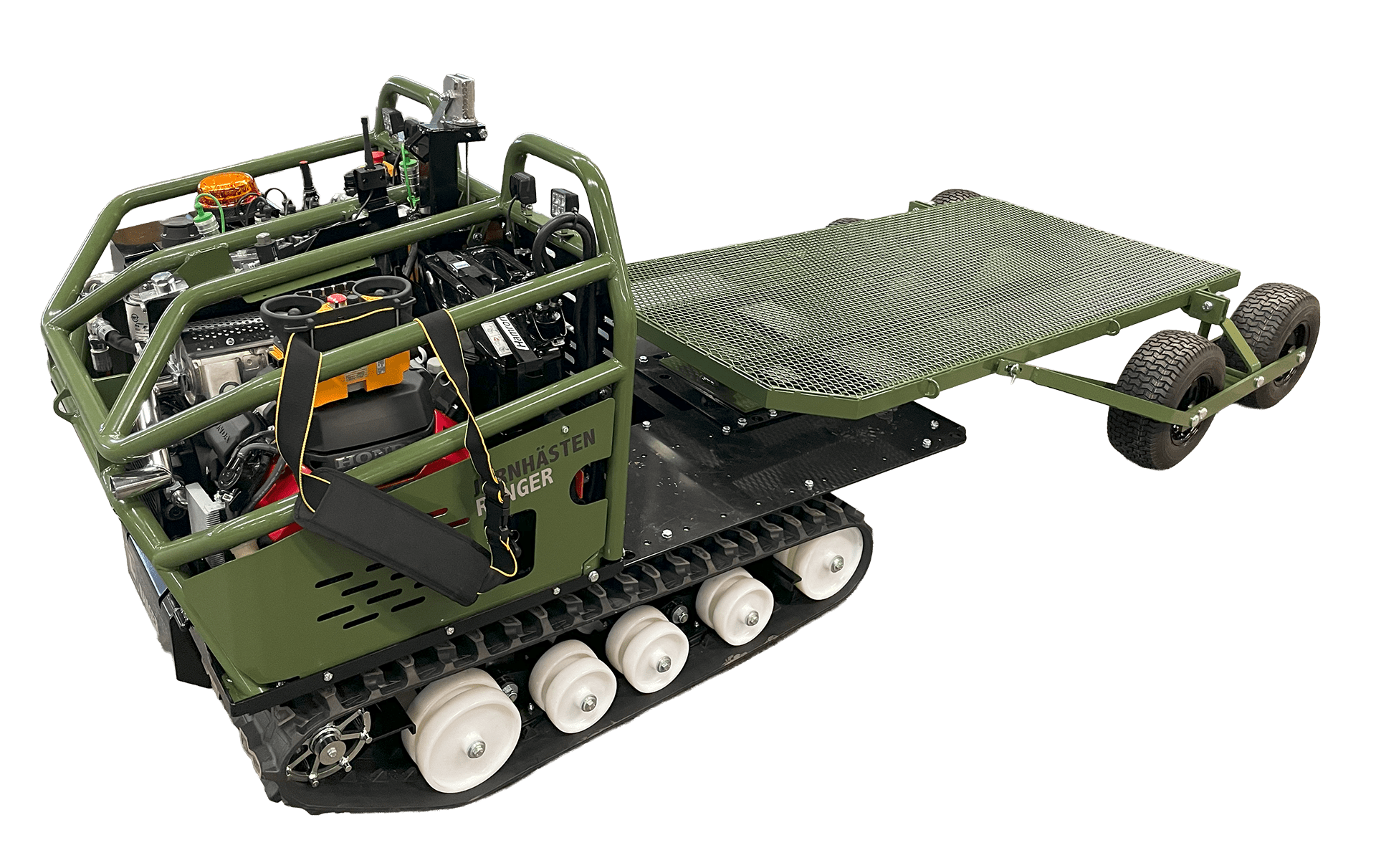

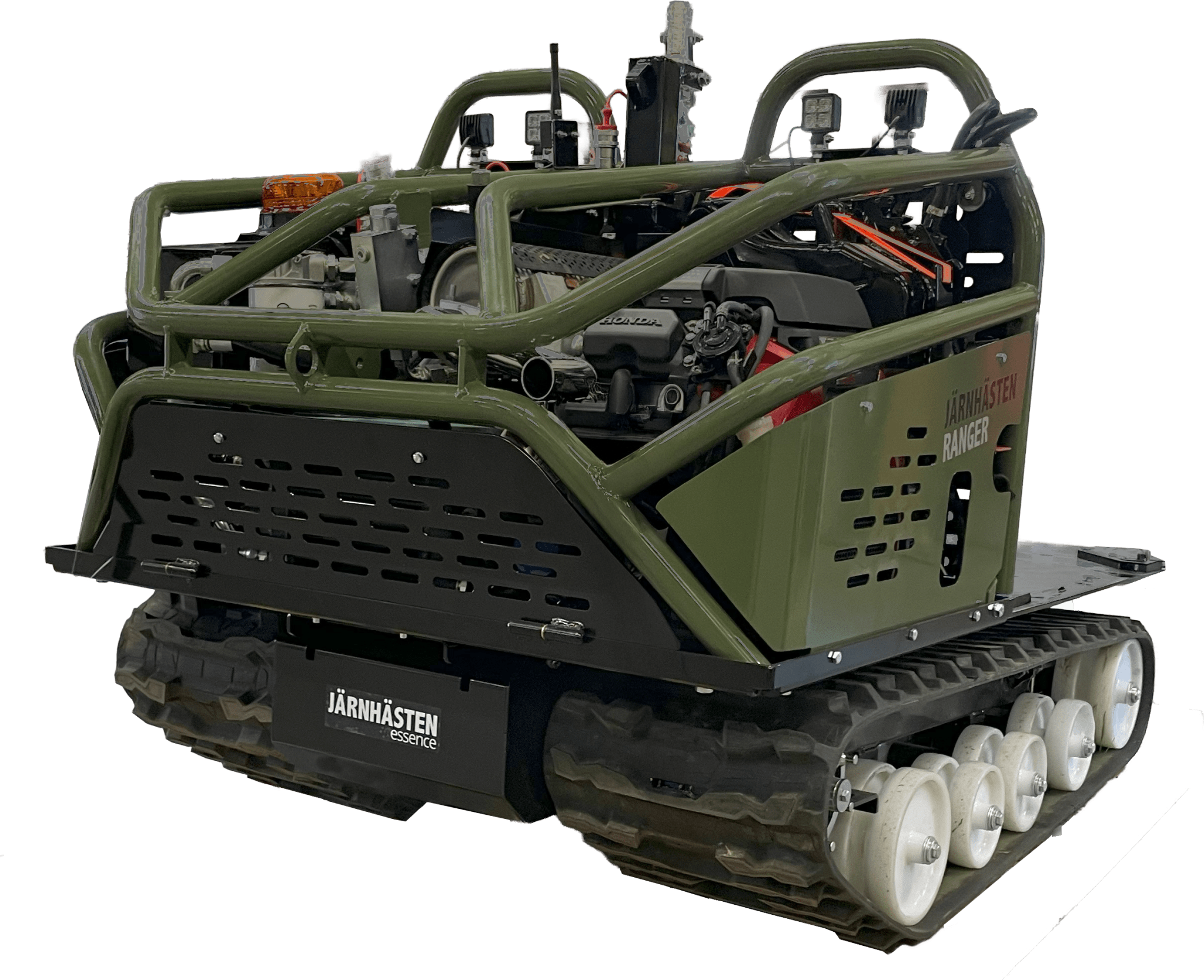

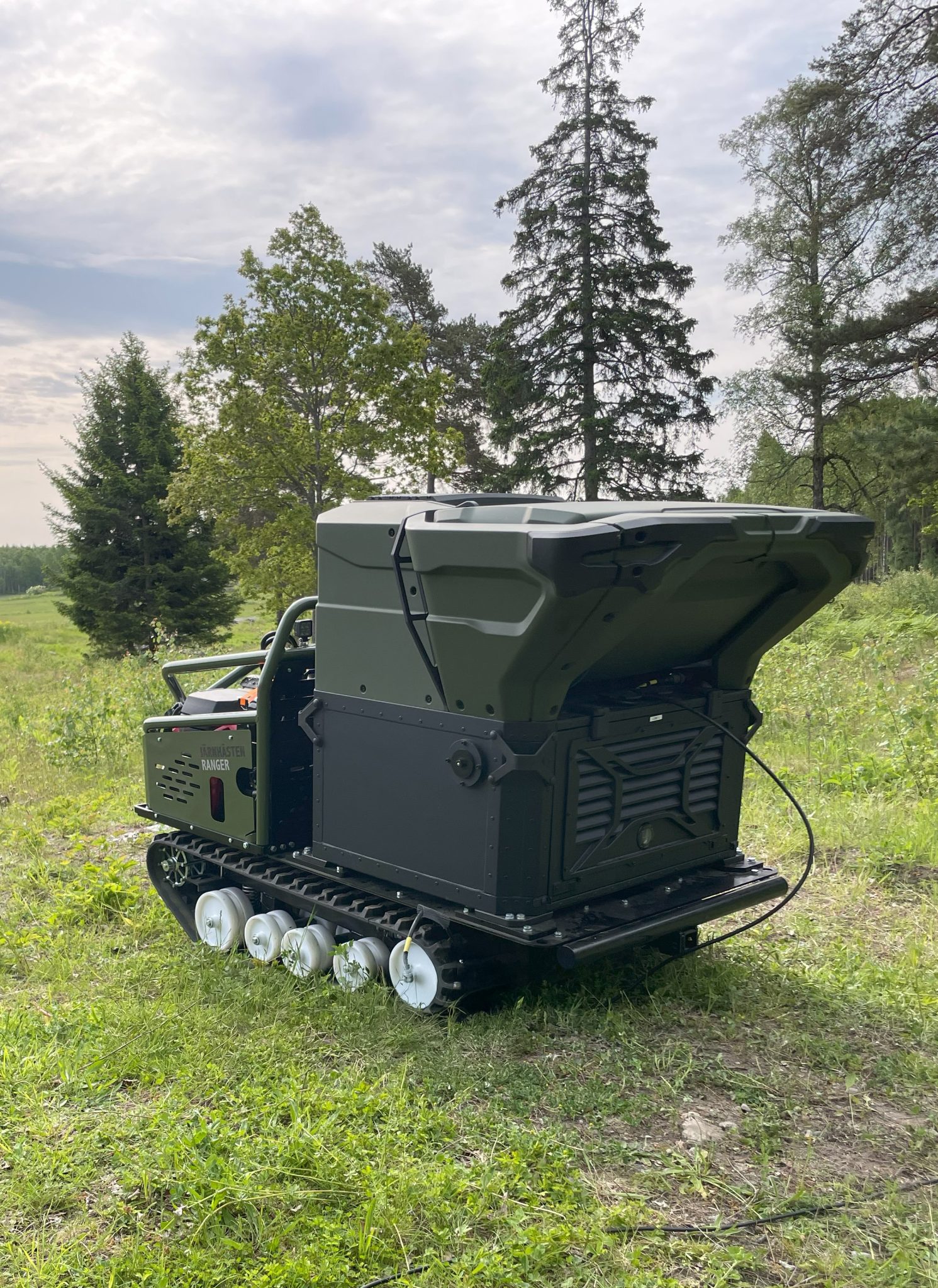

The Iron Horse Ranger is basically a variant of the Essence model adapted for civil and military defense,
The large cargo platform makes it ideal as an equipment carrier.The remote control allows safe operation of all functions without physical proximity to the machine. The robust chassis design, in conjunction with the hydraulics, allows the upper part to be offset in relation to the track frame, thereby optimizing the center of gravity. The result is superior off-road performance and high maneuverability in varied environments
✓
Engine alternative: Honda iGX800, 25 hp(18,6kW)
✓
Transmission: hydraulic, variable (hydrostat)
✓
Drive belt: internal drive with longer contact surface
✓
Working hydraulics: std 14,4 cm3, flow=45l/min, pressure=180+ bar
✓
Weight: 750 kg
✓
Load capacity: 1000 kg
✓
Dimensions: 194 x 114 x 117 cm (l x w x h)
✓
Remote controlled with radio control. Approximately 100 metres range.
✓
Traction: 1100 Kp
✓
Option Hydraulic radio control winch Drawbar pull 800 Kg
✓
Option Accessory lift with Avant and MulitiOn attachment Lifting capacity 700 Kg
Several customization options are available and we are happy to discuss different possibilities both in terms of the Iron Horse itself and applications.
