The IronHorse

in forestry

The concept of transport in the forest was already developed in the 1980s for and by forest owners.Now with the option of modern hydraulics, winch and a range of accessories to make forest work easier.

The ironhorse - the forest owner's best friend

As a self-employed forest owner, there is always something to work on!. Some tasks most people choose to leave to larger machines, but in addition to this there is thinning, bark beetle control, planting and not least storm-felled forest.

If you are thinking of getting an off-road machine for forest work, you might be tempted by the idea that a tractor or ATV would be an option. This works, of course, also in most cases but if you want a machine that really makes its way into the forest and with a hefty load, then you have to look at more specially adapted products such as IRONHORSE.

time, quick

QUICKLY IN PLACE

The compact dimensions of the IRONHORSE make it easy to transport to the forest. There it can be easily driven off and configured as needed with the many accessories.

PROFITABLE

There is great value to be gained from the timely management of storm-felled or insect-damaged forests. Don't wait for the tractor to drive, use the IRONHORSE.

PROTECT YOUR FOREST

The low pressure on the rubber belts does not damage roots and plants like a larger machine. You can manoeuvre the machine in very narrow passages minimising the need for cutting paths.

DO MORE WITH ONE INVESTMENT

An IRONHORSE is a distinctive tool and transport carrier, allowing you to use it as a skinner, loader and pulling machine through its various attachments.

GETTING YOU EVERYWHERE

The unique terrain characteristics allow you to access more difficult areas. The integrated winch further increases the reach.

DO SOMETHING OF YOUR OWN

With the IRONHORSE as a platform, you can create your own solution. We often help our customers to create their own accessory solutions.

Models for forestry

FLEX FOREST

Engine four-stroke 9 Hp or 13 Hp

With or without hydraulics

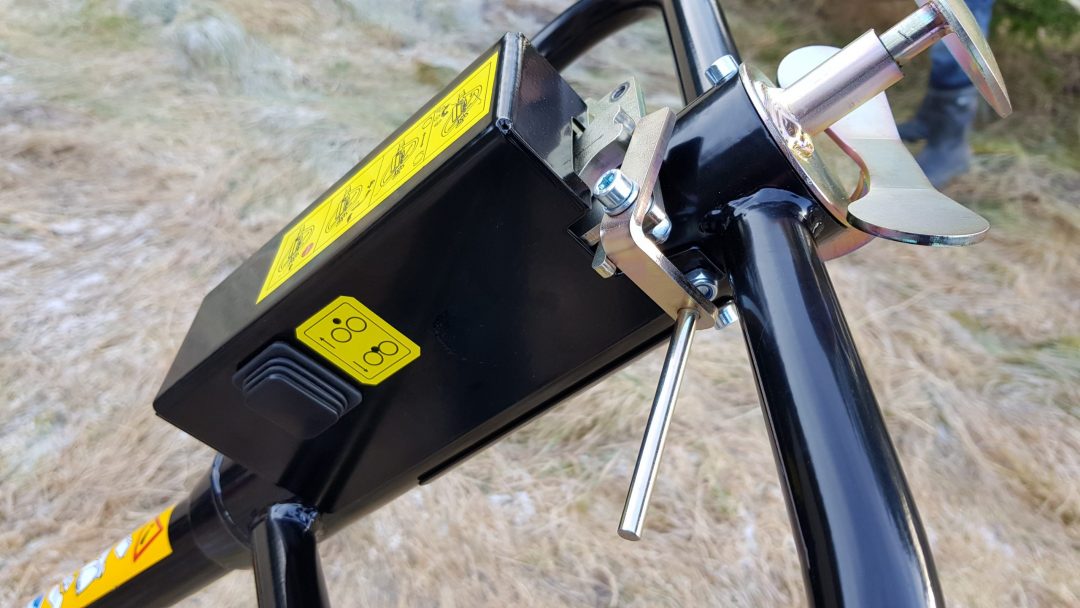

Retractable control lever so you can ride on the machine

Front/Back

Handbrake

Torque converter transmission

Integrated motor winch

Timber bunk

Standard hand operated winch

Chainsaw mount

Storage box

Differential lock

Steel skid plate

Heavy Duty rubber tracks with inside lugs

Removable tooling point, mechanically or hydraulically

Load capacity 1 ton

Traction power 900 kp

Speed 7 km/h

Ground pressure 0,15 kg/cm3 at 500 Kg load

Width 1080 mm

Height 1120 mm (Transport mode)

Length 1780 mm

Weight 445 - 485 Kg

Color Black or Green

Option Hydraulics 21 litres/min Pressure 140 bar

* The machine in the picture is additionally equipped with hydraulics and load plate. The hydraulics have a flow rate of 21 litres/min and press 140 bar to operate the accessories and the removable accessory attachment.

Forested Essence

Engine alternative: Honda iGX800, 25 hp(18,6kW)

Transmission: hydraulic, variable (hydrostat)

Drive belt: internal drive with longer contact surface

Working hydraulics: std 14,4 cm3, flow=45l/min, pressure=180+ bar

Weight: 700 kg

Load capacity: 1000 kg

Dimensions: 194 x 114 x 117 cm (l x w x h)

Remote controlled with radio control. Approximately 100 metres range.

Traction: 1100 Kp

Hydraulic radio-controlled winch Traction 800 Kg

Timber bunk

IRONHORSE IH2013PW FLEX HI

with driven Griplasstar trailer

Engine Honda four-stroke 13 Hp

Retractable control lever so you can ride on the machine

Front/Back

Handbrake

Torque converter transmission

Integrated motor winch

Timber bunk

Standard hand operated winch

Chainsaw mount

Storage box

Differential lock

Steel skid plate

Classic drive tracks

Fixed accessory bracket

Loading 1 Ton

Traction power 900 kp

Speed 7 km/h

Ground pressure 0.15 kg/cm3 at 500 Kg load

Width 1080 mm

Height 1120 mm (Transport mode)

Length 1780 mm

Weight 445 - 485 Kg

Color Red

* The wagon in the picture is extra equipped with lighting and hydraulic winch with radio control.

Attachments and options

The IRONHORSE Essence concept is based on a flexible basic machine with great possibilities for variants and different accessories. We have developed a number of basic attachments and more are in the pipeline. In addition, you as a customer can use the all-round attachment or even develop your own. Please contact us if you have specific requirements and we will try to help with specifications, advice and tips.

Loading platform for the timber cart
Item no.: 531 0135-40

Platform for the timber cart, complete with a bracket for transporting other than timber, such as gravel, sand etc. The platform is mounted in the post brackets and has foldable and removable sideboards and tailboard

Loading crane
Part No: 501 3999-01

The loading crane can be mounted on all models of IRONHORSE that have motor winch. The loading crane consists of a bracket, extendable loading crane with catch arm, links and wire wheels

Full NaGripper trailer T1650
Art.no: 531 0144-92

Gripper trailer T1650 without operation Crane 30-50 Max load 1650 Kg Reach 3,4 m Lifting force at 3,0 m 220 Kg incl. grab claw and rotator Lifting force at 1,2 m 450 Kg incl. grab claw and rotator Weight 448 Kg Length 3820 mm - 44200 mm

Removable LED lighting
Art.no: 531 0143-91

Removable Rechargeable LED Lighting incl. bracket for IRONHORSE. Use as working lighting when driving with IRONHORSE or remove the lamp and hang it up at the workplace. Relatable Lumen 1000/2000 5000K Li-ion battery 7.4v – 8.8 Ah IP44 Dimensions 193x132x216 mm

Service kit
Item no.: 5310144-30

Service kit for IronHorses Classic and Flex manufactured after 2017 and onwards. Fits tiil IH2090PW/IH2013PW with motor winch. Variator belt, Belt for engine winch, Spark plug. Throttle cable, Handbrake cable

The IRONHORSE for forestry

Swedish-made since 1984

More than 12,000 machines sold worldwide

Large accessories program

Unique accessibility in wet terrain

When loaded with 500 Kg, the ground pressure is less than a human

You can ride on it - Speed 7 km/h

You can work easily alone

Easy to move with a regular trailer

Good resale value

Developed by many users over the years

Easy to own – You don't need a big garage for maintainance on your IRONHORSE
