mOVEABLE TOOL-MOUNT · H.D. TRACKS · WORK-HYDRAULICS

The all-round machine
The all-round model with the flexible tool-mount, which can be used to improve the overall balance, but also opens up several possibilities for a variety of add-on tools and accessories, such as the tipping platform and the Timber-grapple.

For whom?
The Iron Horse Flex is a model that is suitable for most users and comes fully equipped for timber handling and forestry and is therefore clearly suitable for the self-employed forest owner who wants a professional and versatile machine. For hunters, a more basic version of this model are also available.

iron horse Flex

BAS

Honda Four Stroke 9 Hp/13 Hp GX engine

Retractable control lever so you can ride on the machine

Front/Back

Handbrake

Torque converter transmission

Standard hand operated winch

Differential lock

Steel skid plate

Cable tower

Heavy Duty rubber tracks with inside lugs

Removable tooling point, mechanically or hydraulically

Load capacity 1 ton

Traction power 900 kp

Speed 7 km/h

Ground pressure 0,15 kg/cm3 at 500 Kg load

Width 1080 mm

Height 1120 mm (Transport mode)

Length 1780 mm

Weight 278 Kg

Color Black

Package

FOREST

Working hydraulics 21 liters/min Pressure 140 bar

Integrated motor winch

Chainsaw mount

Timber bunk

Storage box

Many also place orders:

- Loading plate for the log bank
- Extra chainsaw attachment
- Protective cover
- Steel drive wheels
- Traction ball

FUNCTIONS
  • Removal tool mount
    The tool bracket on which the felling bunk sits is removable

  • Strong Power-Winch
    The powerful power-winch for both loading, driving, and maintenance assistance.
  • H.D. Tracks:
    Track design with very long service life and improved grip, even in snow!
  • Work-hydraulics
    Used both for the movable tool mount and for example to drive a timber trailer with crane.

Tech Specs

Iron horse

Attachments and options

The Iron Horse Flex concept is based on a flexible basic machine with great possibilities for variants and different accessories.We have developed a number of basic accessories and more are in the pipeline. In addition, you as a customer can use the all-round attachment or even develop your own accessories. Please contact us if you have specific requirements and we will try to help with specifications, advice and tips.

Loading platform for the timber cart
Item no.: 531 0135-40

Platform for the timber cart, complete with a bracket for transporting other than timber, such as gravel, sand etc. The platform is mounted in the post brackets and has foldable and removable sideboards and tailboard

Loading crane
Part No: 501 3999-01

The loading crane can be mounted on all models of Iron Horse that have motor winch. The loading crane consists of a bracket, extendable loading crane with catch arm, links and wire wheels

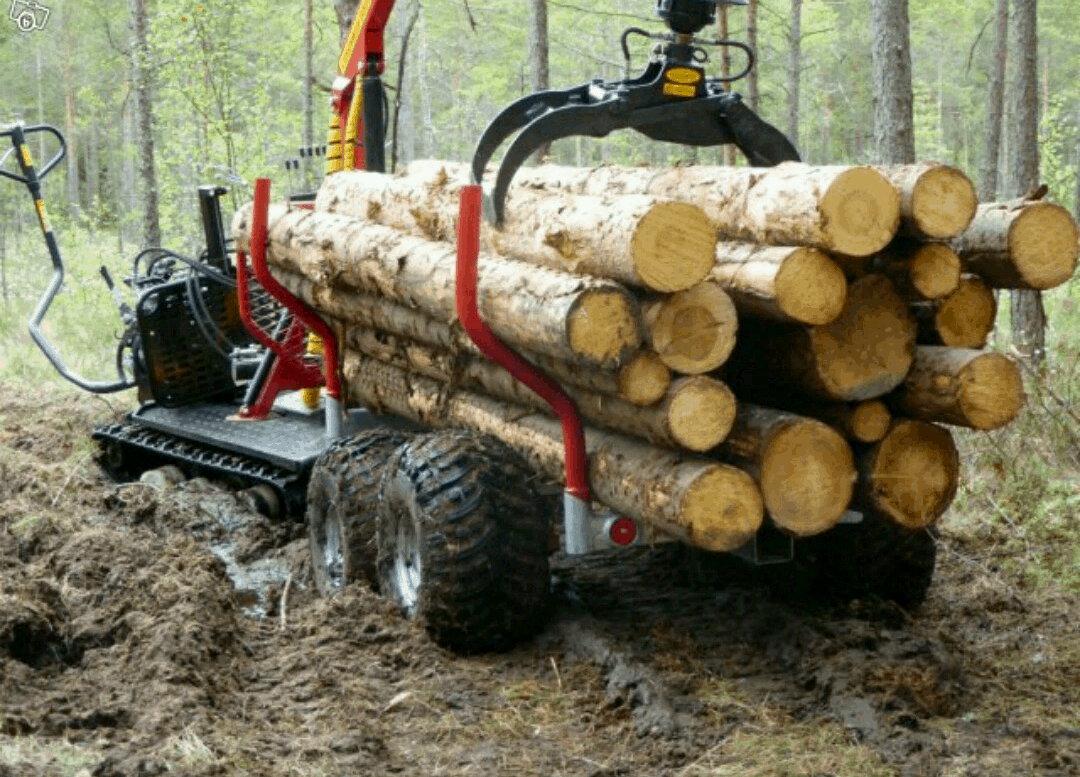

Gripper trailer T1650
Art.no: 531 0144-92

Gripper trailer T1650 without operation Crane 30-50 Max load 1650 Kg Reach 3,4 m Lifting force at 3,0 m 220 Kg incl. grab claw and rotator Lifting force at 1,2 m 450 Kg incl. grab claw and rotator Weight 448 Kg Length 3820 mm - 44200 mm

Removable LED lighting
Art.no: 531 0143-91

Removable Rechargeable LED Lighting incl. bracket for Iron Horse. Use as working lighting when driving with Iron Horse or remove the lamp and hang it up at the workplace. Relatable Lumen 1000/2000 5000K Li-ion battery 7.4v – 8.8 Ah IP44 Dimensions 193x132x216 mm

Service kit
Item no.: 5310144-30

Service kit for IronHorses Classic and Flex manufactured after 2017 and onwards. Fits tiil IH2090PW/IH2013PW with motor winch. Variator belt, Belt for engine winch, Spark plug. Throttle cable, Handbrake cable

moose skidder/hauler
iTEM NO.: 531 096-70

The trailer is mounted with a joint mount on the machine and can be adjusted in height by turning the wheel bars 180 degrees. Through the low height at the rear, it is very suitable to winch up loads from the ground as eg. transporting a moose.

TIPPING FLAG TF800
Art.nr: 5310142-64

The tipping function is driven by the movement of the removable tool attachment if the Iron Horse is equipped with working hydraulics.The side and rear flaps are removable without tools.
