Multiple improvementsA further development of the Flex model with many technical improvements and new features such as remote-controlled hydraulic winch, improved balance and electric anchor winch.
For whom?The IronHorse Flex 2 is a model suitable for most users, and comes fully equipped for timber handling and forestry and is therefore clearly suitable for both the self-employed forest owner and the entrepreneur who wants a professional and versatile machine. Both hunters and firefighters especially appreciate the possibilities with light packages and the increased space for equipment.
Many new features and improvements are now available in the new Flex 2 for those with higher demands on simplicity, serviceability and safety.Now with radio controlled hydraulic winch for easier winching in rough terrain.
The new openable safety frame creates new possibilities for both storage and increased access for maintenance work.
NEWS!
Click on the news for more info!
๐

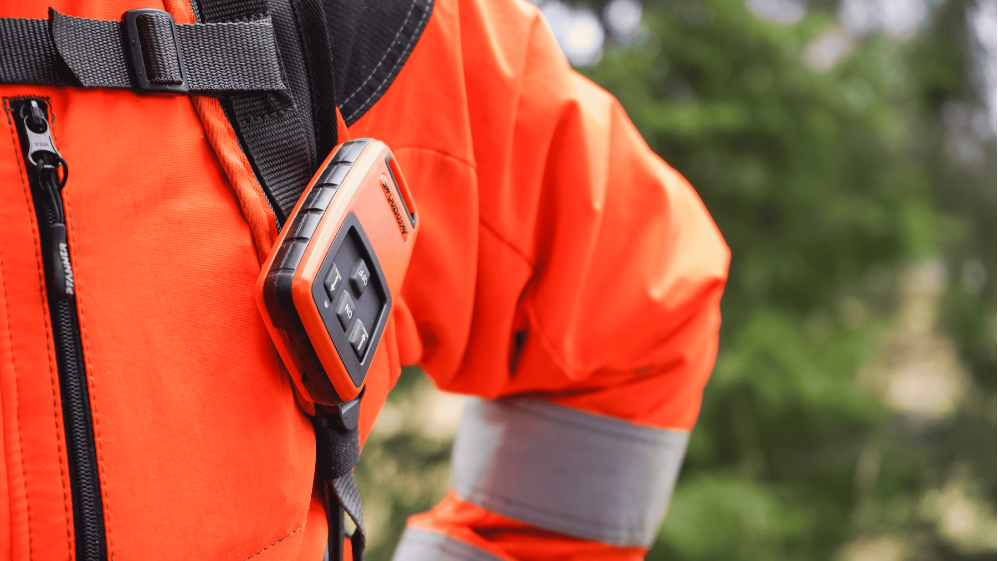

Radio controlled hydraulic winch. NB free spool mechanism!
๐
Heavier rear weight in chassis for improved balance
๐
Simplified track tensioning
๐
Openable safety frame
๐
Larger secondary torque converter
๐
Drive sprockets made by steel
๐
Engine, Honda 4-stroke 9 Hp with 10A charging coil
๐
Larger storage box with lid
๐
Throttle- and brake cable with grease nipple to prevent iceing
๐
Battery with separator
๐
Electric anchor winch
๐
Light Package(Optional)
OTHER DATA
โ
Heavy Duty rubber tracks with inside lugs
โ
Hydraulically movable accessory mount
โ
Handbrake
โ
Timber bunk
โ
Chainsaw mount
โ
Steel skid plate
โ
Differential lock
โ
Storage box
โ
Forward/reverse
โ
Load capacity 1 ton
โ
Traction power 900 kp
โ
Speed 7 km/h
โ
Ground pressure 0,15 kg/cm3 at 500 Kg load
โ
Width 1110 mm
โ
Height 1120 mm (Transport mode)
โ
Length 1780 mm
โ
Weight 520 Kg
Used to anchor the machine when using the main winch.
โ
Pull force 680 kg ("holding force" >1000 kg)
โ
Nylon rope 5 mm
โ
Rope length 10 m
โ
Control via remote control or buttons
Choose our light package for both front light and rear work light. Mobile phone charging socket included in the package.
โ
2 compact LED headlights (15 W) in the front plates
โ
Working light 2 LED 4x3W 1000Lm on adjustable bracket (side/front/back)
โ
12V charging socket via USB connector
Choose the option "More powerful engine" to your order for a 13hp engine instead of the regular 9hp for use with e.g. Griplastar trailer, or heavier driving.
โ
Honda GX390, 13Hp(8,7kW)
โ
Charging coil 10A
โ
Possibility to choose a larger hydraulic pump
Newly developed storage box for your tools, petrol can, clothes or whatever you wish. Attaches with hooks over the cargo cover and anchors to the machine with a simple snap-on attachment. Once in the forest, the box is easily detached and you can use the entire machine's load space for your needs.
Convenient and high design for driving with load with box attached.
โ
Made of sheet metal.
โ
Lockable lid
โ
Removable
โ
Hook for extra gasoline can
โ
Colour: Grey
The Iron Horse Flex concept is based on a flexible basic machine with great possibilities for variants and different accessories.We have developed a number of basic accessories and more are in the pipeline. In addition, you as a customer can use the all-round attachment or even develop your own accessories. Please contact us if you have specific requirements and we will try to help with specifications, advice and tips.
Unique off-road characteristics. Easy to disassemble for transport. The trailer can be extended or shortened. Stands when empty.
The combined trailer is equipped with bogie and joint mount on Iron Horse and is extendable. The posts are foldable and the trailer can be equipped with a cargo platform.
Platform for the timber cart, complete with a bracket for transporting other than timber, such as gravel, sand etc. The platform is mounted in the post brackets and has foldable and removable sideboards and tailboard
The loading plate makes it easy to load larger logs from the rear. The loading plate is lowered to the ground and makes it easy to load the log with the winch.
The log grab makes the job easier when moving large logs and brushwood. You can also easily shift the centre of gravity of your IronHorse Flex HI.
The loading crane can be mounted on all models of Iron Horse that have motor winch. The loading crane consists of a bracket, extendable loading crane with catch arm, links and wire wheels
Gripper trailer T1650 without operation Crane 30-50 Max load 1650 Kg Reach 3,4 m Lifting force at 3,0 m 220 Kg incl. grab claw and rotator Lifting force at 1,2 m 450 Kg incl. grab claw and rotator Weight 448 Kg Length 3820 mm - 44200 mm
With the thinning cutter, you can easily cut coarse timber of any length. The thinning cutter is suitable for the Iron Horse, which is equipped with a motorised winch.
Removable Rechargeable LED Lighting incl. bracket for Iron Horse. Use as working lighting when driving with Iron Horse or remove the lamp and hang it up at the workplace. Relatable Lumen 1000/2000 5000K Li-ion battery 7.4v โ 8.8 Ah IP44 Dimensions 193x132x216 mm
Moulded protective cover adapted for the Iron Horse. Protects the engine and steering column during transport and outdoor storage
Service kit for IronHorses Classic and Flex manufactured after 2017 and onwards. Fits tiil IH2090PW/IH2013PW with motor winch. Variator belt, Belt for engine winch, Spark plug. Throttle cable, Handbrake cable
The platform is easily mounted on the Iron Horse. with the large tail board down folded, it is easy to use the winch to load off the ground.
The trailer is mounted with a joint mount on the machine and can be adjusted in height by turning the wheel bars 180 degrees. Through the low height at the rear, it is very suitable to winch up loads from the ground as eg. transporting a moose.
